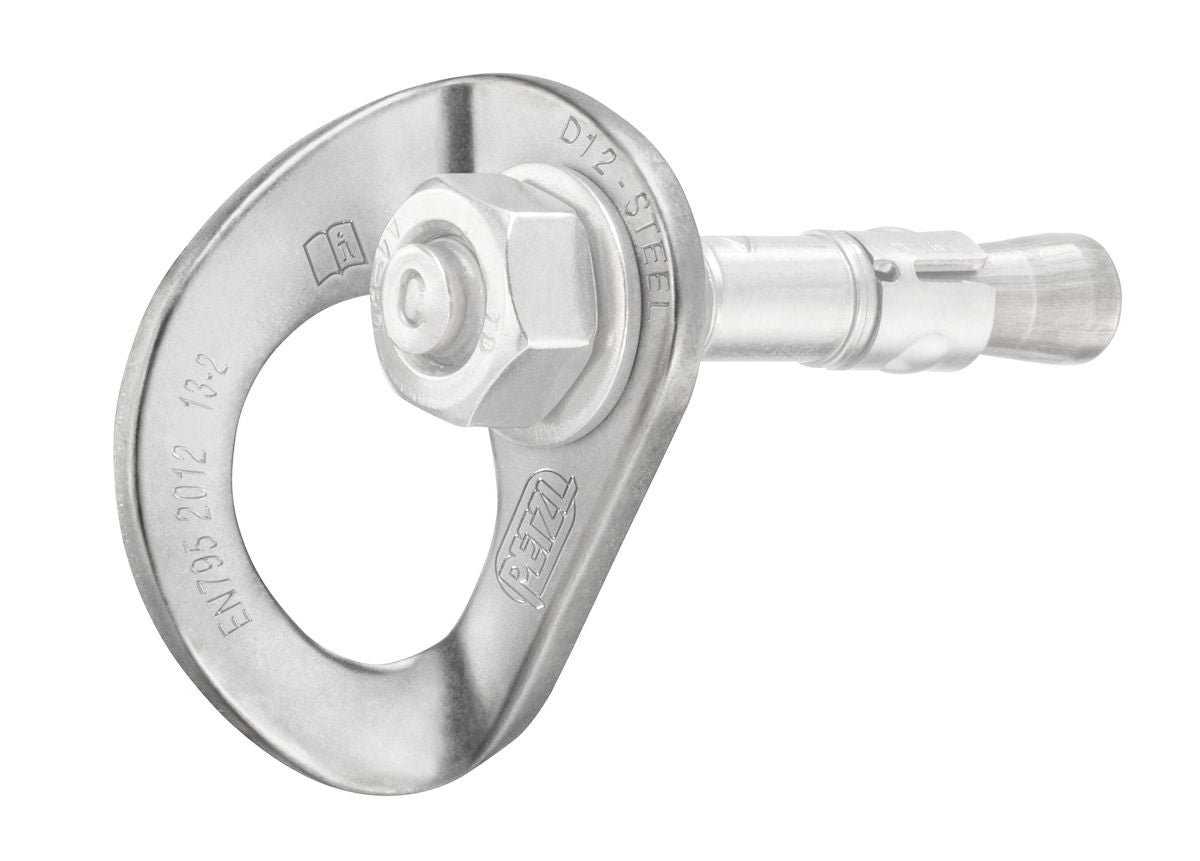

Coeur Bolt Steel 12mm

• Economical choice for low-corrosion environments
• Easy to clip:
- the wide, ergonomic connection point facilitates carabiner clipping
- the width of the attachment point allows installation of two carabiners at the same time
• Reduces wear on connectors: the thickness of the hanger and the rounded edges of the connection point minimize wear on connectors
• Hanger anti-rotation system: textured back keeps the hanger from turning when the anchor is being installed or when it is heavily laterally loaded during use

• P36BA 12
• Diameter: 12mm
• Total bolt length: 105 mm
• Shear strength in 50 MPa concrete: 25kN
• Pull-out strength in concrete 50 MPa: 18kN
• Weight: 158g (Bolt+hanger)
