Flymaster

GPS-SD

GPS-SD

£419.00
£419.00 £419.00
Reduced Sold out
Taxes included. Shipping calculated at checkout.

Flymaster GPS-SD

Engineered for easy navigation. The GPS SD is the ideal instrument for flying non-competition XC flights. It has built in airspace avoidance and many other functions for optimising a great XC flight.

Don't get caught in airspace - With Flymaster's 3D airspace warning system you will have ample information to navigate around restricted airspace zones.

Know Where You Are - Flymaster SD series instruments have amazing worldwide road maps. Plan your flight and you'll never get lost.

Learn more about maps.

Design your own instrument - Need more or less data on your flight screens, with Flymasters' unique Designer you can create the instrument you like and need for your style of flying.

Cloud Flights - With Designer app you can upload all your flights to our Cloud Flights Web Service. Inside your flight details page, you can review your flight, play it back, analyse all data, including all external sensors data, like G-forces and heart rate values. You can also download your flight in IGC format.

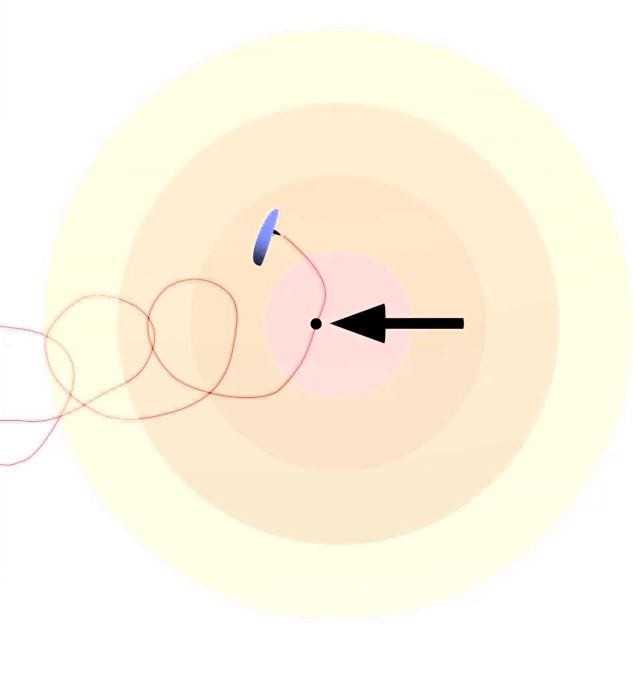

Thermal efficiently - Flymasters' unique thermal ball will help you find the thermal core quicker and the zero buzzer make sure don't fly past lift.

Expandable - The GPS SD has a built in low power wireless interface for connecting compatible accessories. The list of Flymaster wireless accessories is the most complete on the market. Already available for the GPS SD are the HEART-G, TAS and M1.

Flight Sharing - You can use GPSDUMP or any other compatible tool, for Flight Sharing. Just connect your GPS SD to your MAC / PC (windows) and with a few clicks you can download and share your flights, in several well known databases like Xcontest, Leonardo, or DHV.

So Easy - The Flymaster implements an easy intuitive menu driven system with no need to memorise multiple functions on keys with long key presses.

Features

• RF Interface Allows the wireless connection of several external probes, like HEART-G or TAS probe, simultaneously.
• Native USB Connection Allows connection to the PC to download/upload Flight Data, Airspaces Data, etc
• Battery Charging From wall adapter, car adapter or standard usb port
• Micro SD slot Supports cards to 16 GB
• 6 Axis accelerometer and magnetometer Allows 6-degrees of freedom Tilt-compensated Compass)
• Firmware update by USB (upgrades are free)
• User definable pages (each page can be draw using designer software, and include a number of elements only limited by space). 16
• Configurable graphical elements (depending of the element several parameters can be set by the user ex. Size, Border, …) 12
• Configurable data field elements (User can change size, border, title, Font, ...) 61
• Page Trigger Events: Airspace warning, Entering thermal, Transition (leaving thermal), Arriving at turnpoint, Power up
• Multi lingual interface: English, French, German, Spanish, Italian, Polish, Slovenian, Turkish, Portuguese

Route Features
• Several Glides Ratios (average, to next,…)
• Easy route definition
• Route Navigation, configurable safety/risk margin on turn points.
• Route Map (trace with thermal indication)

Cross Country Features
• Exclusive Thermal Ball indicator
• Several specific data fileds like Distance to take off, current and avarage glide ratio, avarage speed, etc.
• Distance to last thermal indexed with altitude
• Goto waypoint
• Multiple waypoint route
• Wind Speed and Direction (GPS based calculations)
• Automatic altitude gain profiler
• McCready related values like speed to fly, next termal climb, etc. (available with the TASProbe)
• Nearby Landings

Specifications

• Display Resolution (High Contrast Grey Scale) 320x240 pixels
• Screen size (true viewing area) 76x57 mm
• Battery Capacity (Lithium-Ion) 2900 mAh
• Autonomy > 30 hours
• Size 155x92x24 mm (Length x Width x Thickness)
• Weight 212g
• GPS 50 channels/4hz
• Storage for >300000 track points
• Up to 248 flights
• 448 Waypoints
