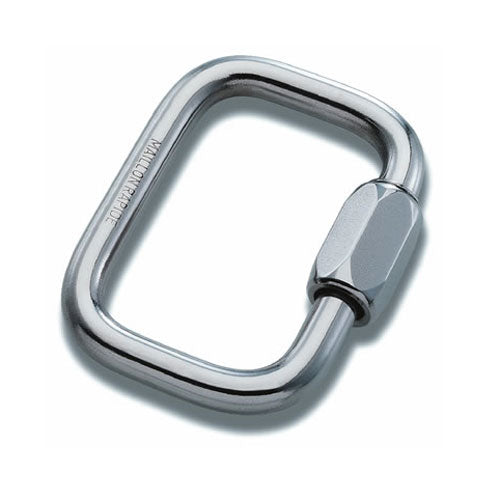

Maillon Rapide
Square Stainless Steel
Square Stainless Steel
(Paragliding use description below)
Use as single point, master connection between your parachute bridle loop (which generally comes with your parachute) and a Y-bridle (which normally comes with your harness, or is purchased as an accessory). Suitable for attaching single point reserves to bridles, mostly used for 18 – 22 mm flat webbing. Ideally use a neoprene cover, elastic bands or heat shrink to stop movement and rotation once fitted.
The best strength/weight connector on the market, manufactured in France by Peguet.
Ideal for any application calling for reliable strength, smallest size and lightest weight.
NOTE: Steel maillons are stamped with a “Working Load Limit” (WLL) corresponding to 20% of their minimum breaking strength (BL). The WLL is the maximum load the manufacturer guarantees will not deform the maillons, allowing opening of the screw closure with fingers.
WARNING: When using steel maillons, double-check and triple-check that they are screwed shut properly as part of every pre-flight check. Tightening should be done with fingers. A spanner may be used carefully, just give them a ‘nip’. Threadlock compound or liquid is not recommended.
特徴
特徴
仕様
仕様
• WLL: 6mm 450kg // 7mm 625kg
• BL: 2250kg // 3125kg
• Total length: 55mm // 64mm
• Weight: 44g // 64g
• Inside flat width: 16.5mm // 18mm
• Inside total width: 31mm // 34mm
• Opening: 7.5mm // 8.5mm
